What is
Air Slide Fabric?

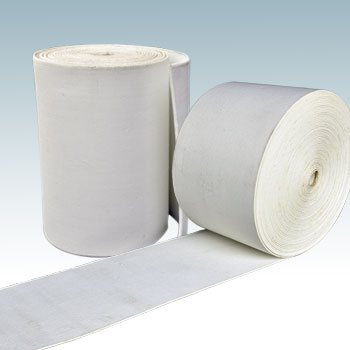

The new airslide fabric (air slide canvas) is developed by our factory adopts advanced technology.Air sliding fabrics are used for pneumatic conveying of fine dry products such as cement and other raw materials. Airslide fabric is a solid fabric used for air sliding.

It is suitable for pneumatic transportation of powdery materials such as cement and alumina. It is also suitable for pneumatic conveying devices of other powder and granular materials. An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt.The product is spread between the material and the air chamber, the following is the gas chamber, the above is the material, under the action of air pressure through the product, the material fluidized, so as to achieve the purpose of transport.

Our air slide fabric is named as fluidising fabric,Airslide fabric, Air slide cloth,fluidizing fabric,aeration pad,aeration fabric,air permeable fabric, Air slide canvas, Air Slide Belt Fabric,air slide fabrics and Fluidization cloth, Fabrics for Air Slides.

types of
air slide fabric

Depending on the customer`s request, we can offer air slide fabric made of different raw materials, in various grades of airpermeability and thickness, depending on the application.Click here to download the product description

Specifications: B250mm, B270mm, B480mm, B580mm; other air slide fabric specifications between 10mm to 1600mm can be produced at any time according to user needs; more than 1600mm of special specifications to be agreed in advance.

Material: Polyester Staple Fiber.

Lenght (m):20-100. Width (m): 0.1-1.6 Thickness: 5-6mm.

Breathability:2m3/m2 min:800pa-1200pa.<3m3/m2 min:<2000pa

Breaking Strength (N/mm):Warp Direction≧ 470N/mm ,Weft Direction≧ 350N/mm .

Operating Temperature (℃): Continuous Operation 220 ,Instant Operation 250 .

Air slide fabric is also named Air slide canvas, Air slide belt fabric, Complete set aero cloth,air slide fabrics, air slide fabric, Solid Woven Air Slide Material, Air permeable fabric, Pneumatic conveyor belt,Aeration pad, Fabrics for air slides.



Product
Performance

With a special and controllable air permeability, air slide fabric can help to improve the convey efficiency and also guarantee the mixed powders uniformity.

When powder transfering, the air slide fabric combined with pressed air in flume make the dry powder become to fluid particles, so the equipment won't be damaged from abrasion, can reduce many repair works. Further more, for the particles be transferred in air tight flume, they won't lost when transferred, it can help to save the cost, and won't pollute the environment.

  • Gyrosigma clear, smooth, dimensional stability, no deformation;
  • Wear-resisting, corrosion resistance, high temperature resistant, no moisture absorption and therefore longer life;
  • No moisture absorption, No caking
  • Resistant to rotting and decomposition
  • Complete unloading without residues
  • Consistent fluidization over the complete surface
  • Good resistance to abrasion
  • Low shrinkage even when used under hot and humid conditions
  • Low energy consumption, very little maintenance, reduce costs

Specific parameters please click here.

airslide canvas

Air slide fabric
Purpose

Depending on the customer`s request, we can offer air slide fabrics(fluidizing fabric) made of different grades of airpermeability and thickness,depending on the application.

Building and Construction : Cement, Furnace Dust, Gypsum, Limestone, Calcium Hydroxide, Lead Monoxide, Production of Aluminum, Acid Crystals, Pure Clay, Phosphates, Magnesite Concentrate, Finely Ground Fluoride, Finely Ground Quartz

Chemical Industry : Thomas Meal (Fertilizer), Rubber Compounds, Sinter Dust, Catalysts Sodium Sulfate, Soap Powder

Power Stations :Filtered Dust, Flue Ash, Discharging Flue Ash, Coal Dust

Silos / Tanks :Discharging Systems, Mixing Equipment, Homogenizing Systems, Warehouse Units

Vehicles : Silo Truck Discharging Cones, Railway Wagon Discharging Cones, Vessel Aeration & Discharging Bottoms, Container Aeration & Discharging Bottoms

Chute Bottoms :Silo Truck Discharging Cones, Railway Wagon Discharging Cones, Vessel Aeration & Discharging Bottoms, Container Aeration & Discharging Bottoms

air slide fabrics

How
Stuff Works

An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt.

Material will flow to the chute lower side as pneumatic blower down Airslide belt.The product is spread between the material and the air chamber, the following is the gas chamber, the above is the material, under the action of air pressure through the product, the material fluidized, so as to achieve the purpose of transport.

airslide fabric

Knitting method

The air slide fabric requires special looms, the air slide fabric(aeration fabric) is heavy enough and the performance is strong. Solid woven fabrics from polyester staple fiber as raw material, by the integration of heavy looms, weft intertwined.

  • Superior abrasion resistance
  • Thickness of 5mm to 8mm (higher thickness made to order)
  • Rot and mildew resistant
  • Unaffected by temperature from 30°C to 220°C
airslide fabrics case

Successful Case

We maintain a long-term and stable cooperation relationship with Lafarge, TCC, Asia Cement , Onoda Cement, Conch Cement, Tianshan Cement.Long-term supply of air slide fabric.

  • Gyrosigma clear, smooth, dimensional stability, no deformation;
  • Wear-resisting, corrosion resistance, high temperature resistant, no moisture absorption and therefore longer life;
  • No moisture absorption, No caking
  • Resistant to rotting and decomposition
  • Complete unloading without residues
  • Consistent fluidization over the complete surface
  • Good resistance to abrasion
  • Low shrinkage even when used under hot and humid conditions

news of
air slide fabric

Depending on the customer‘s request, we can offer airslide fabrics made of different raw materials, in various grades of airpermeability and thickness, depending on the application

About Us



Send us your query!



The airslide fabrics (air slide fabric,airslide fabric) is one of our products.More than 100 world-renowned companies such as Lafarge, TCC and other selected our products.

China Sunrise Machinery (CSM)is a professional cement equipment manufacturing enterprise. We were named one of the "China Machinery Industry's Most Famous Brands”. All the cement machinery products have passed three standard embraced in one system, consisted of ISO9001, ISO14001, and OHSAS18001. Five types of the products have get European CE certification, meanwhile it owns about 30 patented products &high-tech products.

Please provide the following information, We will contact you as soon as possible.



E-mail:[email protected]

Tel: +86-513-88820117

Fax: +86-513-88812117






Airslide Fabric

Air slide fabrics are used for the pneumatic conveying of fine dry powdery products such as cement. The air slide cloth divides the air slide into upper and lower chambers. The chamber is inclined at as low as 1.5°.Compressed air is injected into the lower chamber which then goes through the media and “fluidises” the cement powder. The cement then behaves like a fluid and “flows” down the length of the chamber.

TIPS

Airslide is a semi-permeable textile cloth which allows air to pass through but not the products.

Airslide Fabrics other names are: airslide fabric,air slide fabric,air permeable fabric,fluidising fabric,fluidizing fabric,air slide belt,air slide canvas,aeroslide,airslide membrane,aeration pad, aeration fabric.air slide fabric in shipping,air slide fabric for silos,chute bottoms.
