Advantages of air slide canvas in various industries

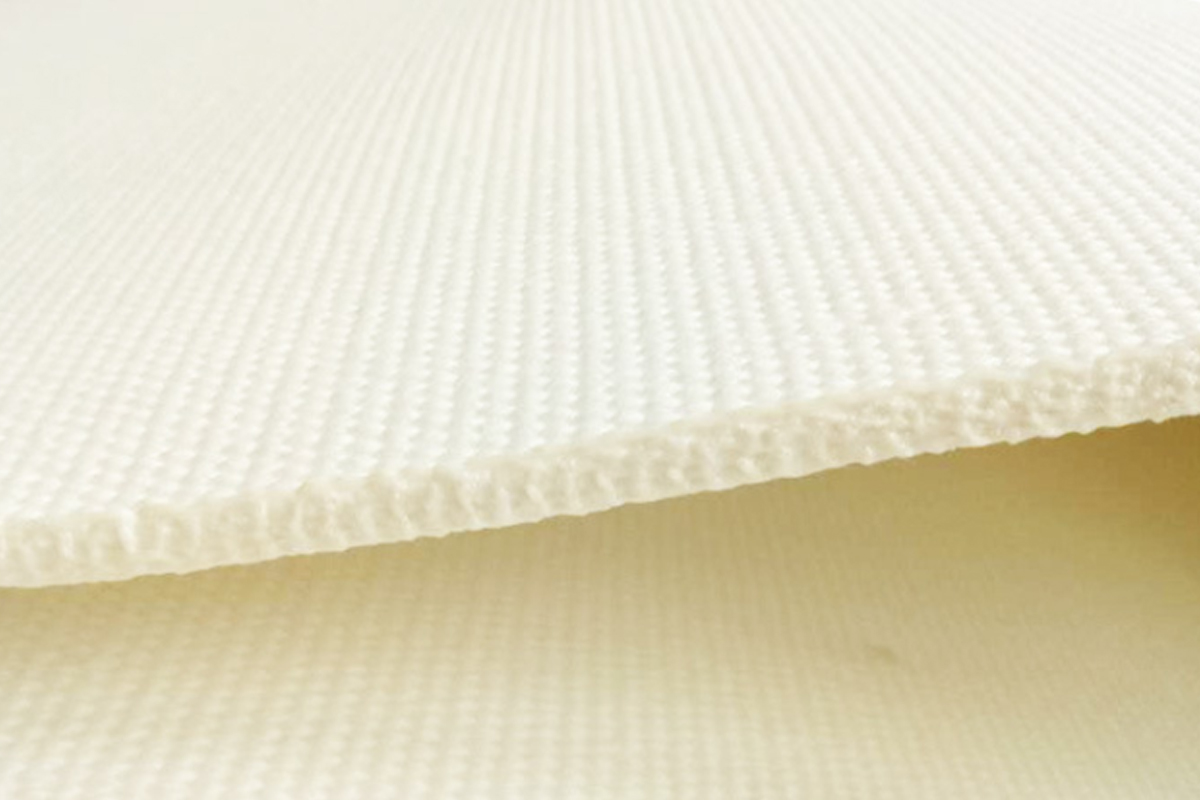

Air slide canvas

Air slide canvas

Choose the specifications:250mm 270mm 480mm 580mm

the specifications between 10mm to 1600mm can be produced at any time according to user needs; more than 1600mm of special specifications to be agreed in advance.

Advantages of air slide canvas in various industries

Description:

Air slide canvas are used for pneumatic conveying of fine dry products. It is indespensible for cement, fertilizer and chemical industry. The solid woven structure of the fabric helps to regulate air flow. The volume of air penetrates at a desired water gauge pressure through the Air slide fabric.Air Slides are referred to as aeroslides, aeration pads, fluxo channels fluid or arms.

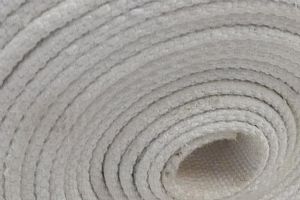

air slide canvas
air slide canvas

Available In

We can offer air slide canvas in Polyester Multifilament as well as Spun Polyester.

Thickness from 4mm to 8mm, width max 2500mm.Polyester multifilament yarn type can be made up to 4 meters.

Length : As per client’s requirement.

We will sell by rolls with big width, meanwhile, we will cut and process it to complete piece, customer will install directly.

Support OEM order.

air slide canvas
Air slide canvas

Advantages in various industries

(1)Advantages in cement industry:

Feature: smooth surface with super function, delaminating resistance, super air permeability, even and stable, high temperature resistance, abrison resistance, low moisture resistance, low return dust, easy assamble, long service life, super replacement for multi-layer canvas and Porous ceramic plate.

Usage: mainly used in powdery material air/pneumatic conveying. in cement industry used for Air conveying chute, All of the library, air lift mud pump, flow value, Bulk cement warehouse in dry feeding equipment.

(2)Advantages in aluminium factory:

Feature: used in large Prebaked anode cell Concentrated tank transport in Concentrated tank conveying system, like: Cement tanker, feeding system equipment in electric tank, or advanced adjustable feeder.

Usage: equipment which used airslide has no mechanical coveyor parts, so has low enegy consumption, no leakage, reliable working, convenient repair, also with long service life.

(3)Advantages in conveying:

Feature: airslide can be assembled on bottom inside tank, like: cement tanker, bulk fly car, bulk cement train, The installation of the cement ship etc.

Usage: after air compressor blowing-in, making the powder material inside tank turn fluid status from solid status, and then unload the material inside tank into designated spot by using pressure difference outside tank.

Air slide fabric

About Us



Send us your query!



Industrial filter bags,Air Slide Fabrics,Needle Punched Felt,Bulk Loading Bellow are just some of our products.More than 100 world-renowned companies such as Lafarge, TCC and other selected our products.

China Sunrise Machinery (CSM)is a professional cement equipment manufacturing enterprise. We were named one of the "China Machinery Industry's Most Famous Brands”. All the cement machinery products have passed three standard embraced in one system, consisted of ISO9001, ISO14001, and OHSAS18001. Five types of the products have get European CE certification, meanwhile it owns about 30 patented products &high-tech products.

Please provide the following information, We will contact you as soon as possible.



E-mail:[email protected]

Tel: +86-513-88812117

Fax: +86-513-88812117






Airslide Fabric

Air slide fabrics are used for the pneumatic conveying of fine dry powdery products such as cement. The air slide cloth divides the air slide into upper and lower chambers. The chamber is inclined at as low as 1.5°.Compressed air is injected into the lower chamber which then goes through the media and “fluidises” the cement powder. The cement then behaves like a fluid and “flows” down the length of the chamber.

TIPS

Airslide is a semi-permeable textile cloth which allows air to pass through but not the products.

Airslide Fabrics other names are: airslide fabric,air slide fabric,air permeable fabric,fluidising fabric,fluidizing fabric,air slide belt,air slide canvas,aeroslide,airslide membrane,aeration pad, aeration fabric.air slide fabric in shipping,air slide fabric for silos,chute bottoms.
