Installation method of airslide canvas in the air slide

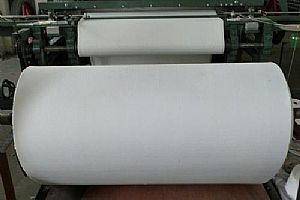

Air slide canvas

Air slide canvas

Choose the specifications:250mm 270mm 480mm 580mm

the specifications between 10mm to 1600mm can be produced at any time according to user needs; more than 1600mm of special specifications to be agreed in advance.

Installation method of airslide canvas in the air slide

Description

Open truck loading bellow
airslide canvas

Airslide canvas is made of high quality synthetic temperature resistant fiber, which is suitable for pneumatic conveying of cement, alumina and other powders.


installation method of airslide canvas in the air slide

Open truck loading bellow
airslide canvas

Now let's learn the installation method of airslide canvas in the air slide:

1. The slope shall be strictly guaranteed during the installation of the air slide. The upper and lower tank connection flanges are the datum plane with a tolerance of 1/1000 (the accumulated error should be in the direction of increasing the slope). Horizontal roughness tolerance of the tank is 1/500 of the width.

2, Airslide canvas should be kept in a clean and dry place, installation, do not stick to oil and water. When blanking, the length of the airslide canvas is 0.5m longer than the slope, and the width is 1.5cm wider than the flange of the shell, and the upper shell is installed after the longitudinal tension. Right now, transverse also pull tight as far as possible, when meeting curved groove and 3, 4 when pass groove, to maintain permeability even, layer is indirect head wants crisscross to leave, go all out to juncture strict. When installing, first install the upper shell of the joint, then tighten each end.

3, Air slide parts installation, strict requirements, no leakage of dust leakage. Design consideration for simple and easy to use asbestos rope seal. The site can also use asbestos rope plus lead oil, blanket pad, rubber strip and other methods according to the specific situation.

4. Check and adjust the inspection door, three-way groove, four-way groove, peep window, cut-off valve and other parts to make them flexible in operation. Close tightly, one of the rubber gate valve and airslide canvas contact place to repeatedly plastic, and strive to match.


More Air Slide Fabrics

About Us



Send us your query!



Industrial filter bags,Air Slide Fabrics,Needle Punched Felt,Bulk Loading Bellow are just some of our products.More than 100 world-renowned companies such as Lafarge, TCC and other selected our products.

China Sunrise Machinery (CSM)is a professional cement equipment manufacturing enterprise. We were named one of the "China Machinery Industry's Most Famous Brands”. All the cement machinery products have passed three standard embraced in one system, consisted of ISO9001, ISO14001, and OHSAS18001. Five types of the products have get European CE certification, meanwhile it owns about 30 patented products &high-tech products.

Please provide the following information, We will contact you as soon as possible.



E-mail:[email protected]

Tel: +86-513-88812117

Fax: +86-513-88812117






Airslide Fabric

Air slide fabrics are used for the pneumatic conveying of fine dry powdery products such as cement. The air slide cloth divides the air slide into upper and lower chambers. The chamber is inclined at as low as 1.5°.Compressed air is injected into the lower chamber which then goes through the media and “fluidises” the cement powder. The cement then behaves like a fluid and “flows” down the length of the chamber.

TIPS

Airslide is a semi-permeable textile cloth which allows air to pass through but not the products.

Airslide Fabrics other names are: airslide fabric,air slide fabric,air permeable fabric,fluidising fabric,fluidizing fabric,air slide belt,air slide canvas,aeroslide,airslide membrane,aeration pad, aeration fabric.air slide fabric in shipping,air slide fabric for silos,chute bottoms.
