P84 filter bag

Air slide canvas

Air slide canvas

Choose the specifications:250mm 270mm 480mm 580mm

the specifications between 10mm to 1600mm can be produced at any time according to user needs; more than 1600mm of special specifications to be agreed in advance.

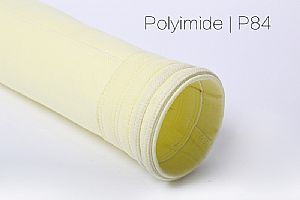

P84 filter bag

Description

P84 filter bag is a kind of flame retardant, heat resistance and stable fiber filter material, under the condition of temperature 240 ℃, P84 polyimide fiber filter material mechanical didn't change, the highest heat resistance up to 260 ℃. P84 fiber filter material has no melting point temperature and is naturally golden yellow. P84 polyamide fiber filter material is not a hygroscopic fiber filter material (at 65% relative humidity, about 3% water absorption).

In addition, P84 fiber is often implanted in the surface layer of filter material (dust side to improve the filtration performance of filter material) because it is a special-shaped (leaf-shaped) cross-section structure with large filtration surface area and excellent filtration performance.

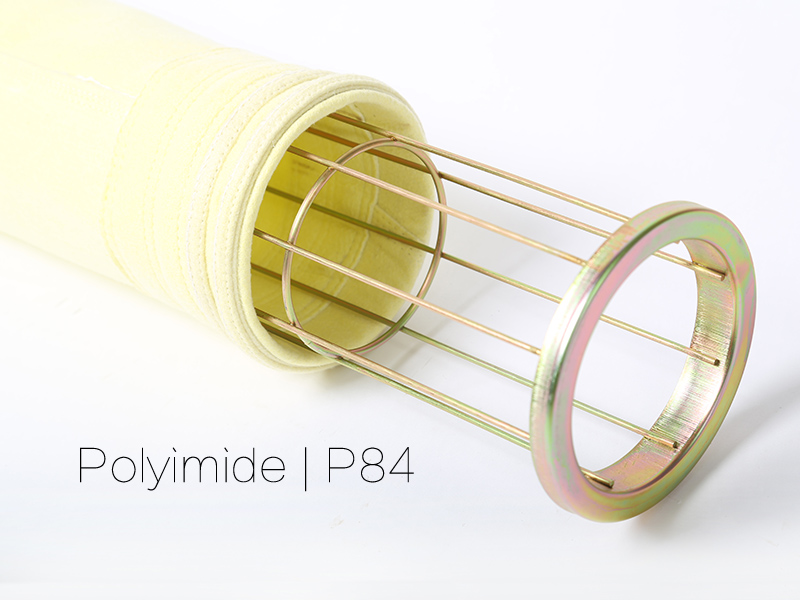

P84 filter bag

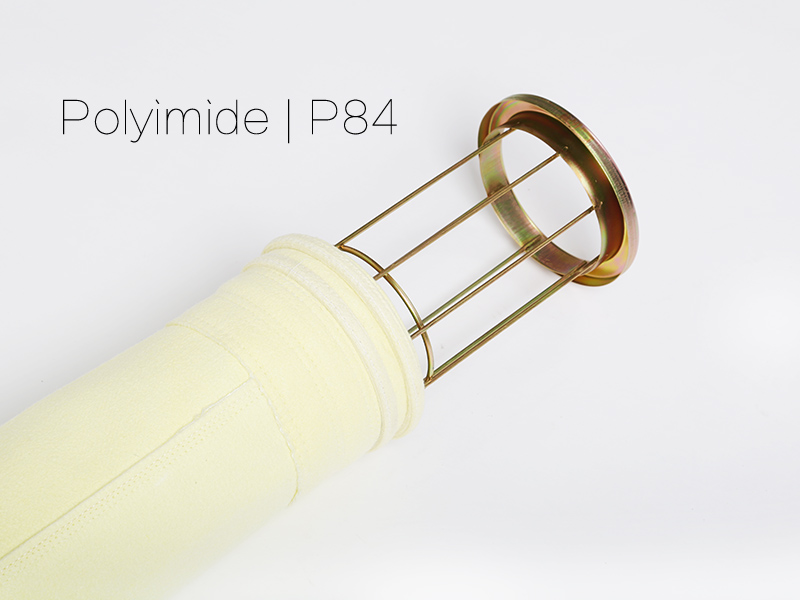

P84 filter bag

Technical parameters

1. Remarkable temperature resistance: working temperature 260 ℃, but has a safe space for the closing downand the unexpected events and so on.

2. Good chemical resistance: the value of P84 filter bag in filtering acid waste dust has been proved in the past decade of refuse incineration.

3. Low backwash pressure and high elastic desilting cake efficiency: the characteristics of P84 are remarkable because of the fineness of the fiber itself, and the irregular cross section of the fiber increases the surface area of the fiber to the maximum and provides many tiny pores to make the surface filtration effect better than the depth filtration. The dust only stays on the surface of the filter blanket but fails to penetrate into the filter blanket. Therefore, the reverse washing pressure is small, and the elastomodic efficiency of the filter cake is significantly improved, with excellent collection efficiency of fine particles and small operating pressure difference.

Acrylic filter bag
P84 dust bag

Technical parameters

MaterialP84
Weight (g/m2)500
Thickness (mm)1.8
Air permeability (m 3 /m 2 /min)≥15
Tensile Strength(N/5*20cm)Warp≥1100
Weft≥1200
Elongation (%)Warp≤25
WEFT≤35
Burst Strength (Mpa/min) 2.55
Working Temperature ( ℃ )Continues ≤260
Instant 280
Acid Resistanceexcellent
Alkali Resistanceexcellent
Abrasion Resistanceexcellent
Hydrolyte Resistanceexcellent
Finishing heat set and singed
Temperature (℃)constant260
instant280

Application

P84 dust bag is mainly used for pulsed bag filter of boiler in coal-fired power plant (flue gas treatment of low-sulfur coal), which is suitable for coal-fired boiler, liquid bed boiler, waste incineration, asphalt plant, cement plant, waste incinerator, etc.



More Filter Bags

About Us



Send us your query!



Industrial filter bags,Air Slide Fabrics,Needle Punched Felt,Bulk Loading Bellow are just some of our products.More than 100 world-renowned companies such as Lafarge, TCC and other selected our products.

China Sunrise Machinery (CSM)is a professional cement equipment manufacturing enterprise. We were named one of the "China Machinery Industry's Most Famous Brands”. All the cement machinery products have passed three standard embraced in one system, consisted of ISO9001, ISO14001, and OHSAS18001. Five types of the products have get European CE certification, meanwhile it owns about 30 patented products &high-tech products.

Please provide the following information, We will contact you as soon as possible.



E-mail:[email protected]

Tel: +86-513-88812117

Fax: +86-513-88812117






Airslide Fabric

Air slide fabrics are used for the pneumatic conveying of fine dry powdery products such as cement. The air slide cloth divides the air slide into upper and lower chambers. The chamber is inclined at as low as 1.5°.Compressed air is injected into the lower chamber which then goes through the media and “fluidises” the cement powder. The cement then behaves like a fluid and “flows” down the length of the chamber.

TIPS

Airslide is a semi-permeable textile cloth which allows air to pass through but not the products.

Airslide Fabrics other names are: airslide fabric,air slide fabric,air permeable fabric,fluidising fabric,fluidizing fabric,air slide belt,air slide canvas,aeroslide,airslide membrane,aeration pad, aeration fabric.air slide fabric in shipping,air slide fabric for silos,chute bottoms.
