What can we know about the properties of air slide fabric?

Air slide canvas

Air slide canvas

Choose the specifications:250mm 270mm 480mm 580mm

the specifications between 10mm to 1600mm can be produced at any time according to user needs; more than 1600mm of special specifications to be agreed in advance.

What can we know about the properties of air slide fabric?

Description:

Air slide fabric is an alternative material for multi-layer canvas and ceramic porous board. The commonly used air slide fabric is woven from polyester staple fiber, with smooth and smooth surface, good integrity, uniform and stable air permeability, wear resistance, high temperature resistance, no absorption, no return to ash, easy installation, long service life and other characteristics.

The air slide fabric is suitable for pneumatic conveying chute of cement, alumina, etc. It is often used for conveying cement and raw powder in cement industry. Pneumatic conveying chute is widely used in conveying materials because it has no rotating parts, easy to maintain, good sealing, no noise, safe and reliable operation, less power consumption, convenient to change the direction of conveying, and can feed and discharge more.

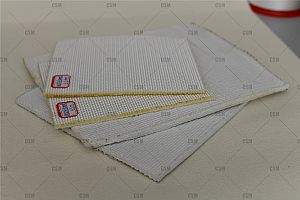

air slide fabric
Air slide fabric

Look at the performance advantages of air slide fabric from the following aspects:

1, Strength: the strength of polyester fiber is nearly 1 times higher than cotton and 3 times higher than wool. Therefore, polyester fabric is strong and durable.

2, Heat resistance: can be used at -50℃ ~ +180℃, is the synthetic fiber heat resistance and thermal stability is good.

3, Elasticity: polyester elasticity is close to wool, wrinkle resistance than other fibers, fabric does not wrinkle, good maintenance.

4, Wear resistance: polyester wear resistance is second only to nylon, in the synthetic fiber ranks second.

air slide fabric
Air slide fabric

The air slide fabric is also suitable for other pneumatic conveying devices of powder and granular materials, such as train and bulk powder tanker, which can be used as vaporizing bed to mix the materials and air in a vaporizing state and have good fluidity, so as to improve the conveying efficiency. If used in the cement raw material homogenizing warehouse, it can make the cement raw material mixing evenly.

Air slide fabric

About Us



Send us your query!



Industrial filter bags,Air Slide Fabrics,Needle Punched Felt,Bulk Loading Bellow are just some of our products.More than 100 world-renowned companies such as Lafarge, TCC and other selected our products.

China Sunrise Machinery (CSM)is a professional cement equipment manufacturing enterprise. We were named one of the "China Machinery Industry's Most Famous Brands”. All the cement machinery products have passed three standard embraced in one system, consisted of ISO9001, ISO14001, and OHSAS18001. Five types of the products have get European CE certification, meanwhile it owns about 30 patented products &high-tech products.

Please provide the following information, We will contact you as soon as possible.



E-mail:[email protected]

Tel: +86-513-88812117

Fax: +86-513-88812117






Airslide Fabric

Air slide fabrics are used for the pneumatic conveying of fine dry powdery products such as cement. The air slide cloth divides the air slide into upper and lower chambers. The chamber is inclined at as low as 1.5°.Compressed air is injected into the lower chamber which then goes through the media and “fluidises” the cement powder. The cement then behaves like a fluid and “flows” down the length of the chamber.

TIPS

Airslide is a semi-permeable textile cloth which allows air to pass through but not the products.

Airslide Fabrics other names are: airslide fabric,air slide fabric,air permeable fabric,fluidising fabric,fluidizing fabric,air slide belt,air slide canvas,aeroslide,airslide membrane,aeration pad, aeration fabric.air slide fabric in shipping,air slide fabric for silos,chute bottoms.
