What should we do if the airslide canvas of the conveying chute is damaged?

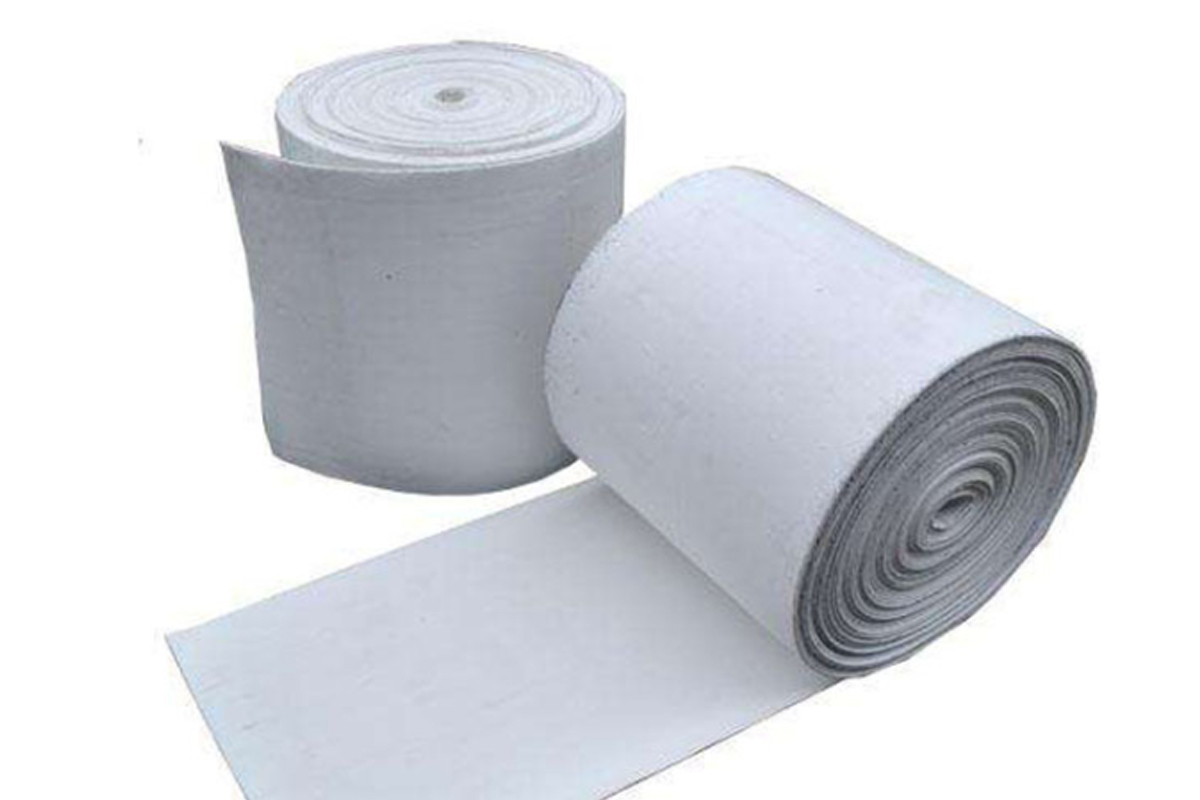

Air slide canvas

Air slide canvas

Choose the specifications:250mm 270mm 480mm 580mm

the specifications between 10mm to 1600mm can be produced at any time according to user needs; more than 1600mm of special specifications to be agreed in advance.

What should we do if the airslide canvas of the conveying chute is damaged?


The main component of the air conveying chute is airslide canvas. The flexible thick plate synthetic fiber fabric used in the design is a new type of airslide canvas, which has high temperature resistance, corrosion resistance, wear resistance and moisture absorption. Low strength, light weight, flat surface and long service life. The airslide canvas does not need to be installed on site. After each tank is assembled by the manufacturer, it can be docked on site, which reduces the installation workload and ensures the quality.

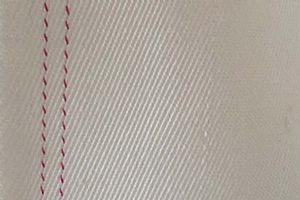

airslide canvas
airslide canvas

The air conveying chute has small friction, easy maintenance, material saving, no noise, good sealing, simple structure, reliable operation, turning and conveying, multi-point addition and unloading, etc., so it is widely used in the transportation of raw materials and cement in cement plants. . However, if the installation or use is improperly maintained, it is prone to failures such as chute blockage and rupture of the breathable layer.

Causes of air conveying chute blockage & how to repair the airslide canvas:

(1) The air conveying chute gas permeable layer cloth is damaged and leaking, and the gas in the chute is ejected from the place, which hinders the material from advancing and causes the chute to block. Therefore, the airslide canvas of the chute should be inspected regularly, and the damage should be replaced in time.

(2) When the material to be conveyed is wet or the humidity of the air is high, it is easy to cause blockage of the airslide canvas. Therefore, it is necessary to strictly control the moisture of the material to be conveyed according to the index, and often sweep the filter of the air outlet of the blower.

(3) Large particles and debris are trapped in the conveying material, so that the moving speed of the material is lowered, and it is difficult to be fluidized, resulting in blockage of the chute. Therefore, it is necessary to install a slag removing device near the feed port of the air conveying chute to timely handle the debris.

airslide canvas
airslide canvas

If you are looking for airslide canvas, we are your ideal choice, please contact us immediately, email: [email protected].

Air slide fabric

About Us


Send us your query!


Industrial filter bags,Air Slide Fabrics,Needle Punched Felt,Bulk Loading Bellow are just some of our products.More than 100 world-renowned companies such as Lafarge, TCC and other selected our products.

China Sunrise Machinery (CSM)is a professional cement equipment manufacturing enterprise. We were named one of the "China Machinery Industry's Most Famous Brands”. All the cement machinery products have passed three standard embraced in one system, consisted of ISO9001, ISO14001, and OHSAS18001. Five types of the products have get European CE certification, meanwhile it owns about 30 patented products &high-tech products.

Please provide the following information, We will contact you as soon as possible.


E-mail:[email protected]

Tel: +86-513-88812117

Fax: +86-513-88812117



Airslide Fabric

Air slide fabrics are used for the pneumatic conveying of fine dry powdery products such as cement. The air slide cloth divides the air slide into upper and lower chambers. The chamber is inclined at as low as 1.5°.Compressed air is injected into the lower chamber which then goes through the media and “fluidises” the cement powder. The cement then behaves like a fluid and “flows” down the length of the chamber.


Airslide is a semi-permeable textile cloth which allows air to pass through but not the products.

Airslide Fabrics other names are: airslide fabric,air slide fabric,air permeable fabric,fluidising fabric,fluidizing fabric,air slide belt,air slide canvas,aeroslide,airslide membrane,aeration pad, aeration fabric.air slide fabric in shipping,air slide fabric for silos,chute bottoms.
